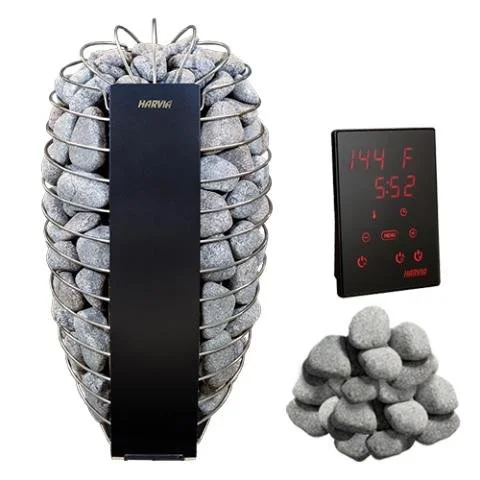

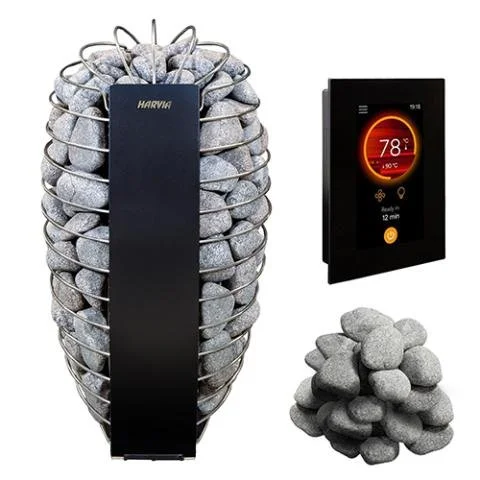

The Harvia Spirit 9kW Sauna Heater Package comes complete with the Spirit SP90E Sauna Heater, Xenio Wi-Fi Control or Fenix Wi-Fi Control, and Sauna Stones. This premium-quality heater package has an elegantly curved shape, allowing it to heat quickly to your desired temperature.
The integrated safety features of the Spirit SP90E ensure that the heater cannot be turned on if items are placed on top of it, making it is safe to start the heater remotely using the available Wi-Fi app. It has dual safety sensors with one monitoring the heater and one monitoring the temperature of the sauna room to prevent overheating.
-
Spirit SP90E Sauna Heater
Wall-mounted design
Stylish and high-quality heater
Heats up the sauna quickly and safely
Integrated safety functions ensure safe use
Compatible with the Xenio Controls
Designed, engineered, and made in Finland
110 pound stone capacity
Dimensions: 15"W (38.1 cm) x 13.1"D (33.3 cm) x 29.5"H (74.9 cm)
Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

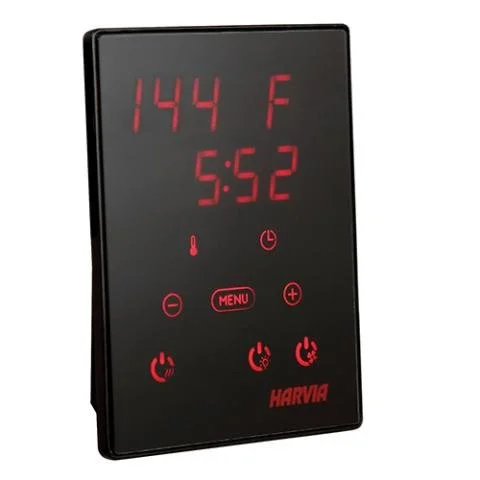

Xenio Wi-Fi Control
Modern control unit that is precise and easy
Wi-Fi connectivity for remote control and monitoring
Controls time, temperature, lighting, and fan
Operating temperature range of 104-194°F
Surface of flush-mount installation type
Can be installed inside or outside the sauna room
Dimensions: 3.4"W (8.6 cm) x 1"D (2.5 cm) x 4.4"H (11.2 cm)
Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)

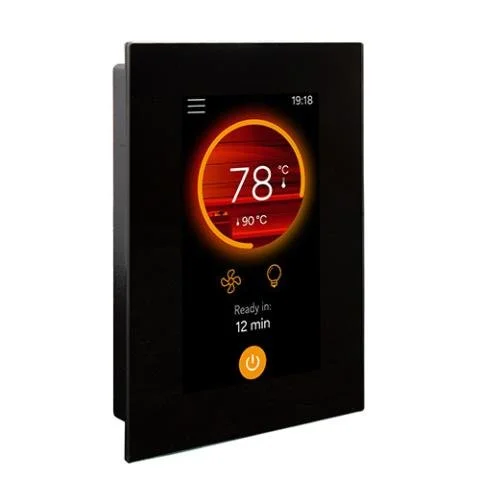

Fenix Wi-Fi Control
Controls the sauna heater, lighting, and ventilation
Intelligent user interface that is precise and easy
High-quality glass screen control panel
Learns with AI and adapts to the performance of your sauna heater
Wi-fi connectivity for remote control and monitoring
Control panel operating temperature range from 104-194°F
Surface of flush-mounted installation
Installs inside or outside the sauna room
Dimensions: 3.4"W (8.6 cm) x 1"D (2.5 cm) x 4.4"H (11.2 cm)
Limited 1-year warranty (consumer use) and limited 1-year warranty (commercial use)
Sauna Stones
Olivine diabase sauna stones
Round shape
Durable with high-heat capacity
Stones range from 2" to 4" (5-10 cm)
-
Spirit SP90E Sauna Heater
Sauna Heater
Temperature Sensor
Please note: Must install per the instructions in the heater manual.
Wall-Mounting Bracket
Mounting Screws
Installation and Operation Manual
1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Xenio Wi-Fi Control
Control
Temperature Sensor
Please note: Must install the sensor included with the heater per the instructions in the heater manual.
Power Unit
Installation and Operation Manual
1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Fenix Wi-Fi Control
Control Panel
Temperature Sensor
Please note: Must install the sensor included with the heater per the instructions in the heater manual.
Power Unit
Data Cable
Installation Materials
Installation and Operation Manual
1-Year Limited Warranty (Consumer Use) and 1-Year Limited Warranty (Commercial Use)
Sauna Stones
132 lbs of 2" to 4" (5-10 cm) Round Stones
-
Model SPIRIT SP90E PKG
Model SP90E
Room Size177-494 cu. ft.
Wattage Rating 9000
Voltage 240
Phase 1
Amperage 37.5
Circuit Breaker See Installation and Operation Manual
Wire Size AWG 8
Safety Listing ETL (Electrical Testing Laboratories)
Minimum Ceiling Height 75" (190 cm)
Safety Distance (Front to Back) See Installation and Operation Manual
Safety Distance (Left to Right) See Installation and Operation Manual
Stone Capacity 110 lbs (49.9 kg)
Stone Size 2" to 4" (5-10 cm)
Width 15" (38.1 cm)
Depth 13.1" (33.3 cm)
Height 29.5" (74.9 cm)
Weight 28.8 lbs (13.1 kg)
Shipping Weight with Sauna Stones 160.8 lbs (72.9 kg)
Model CX45-U1-U3-XW
Maximum Output Kilowatt Rating 10.8kW
Voltage 240
Phase 1
Temperature Adjustment Range 104-194°F
Pre-Setting Time Adjustment Range 0-12 Hours
Width 3.4" (8.6 cm)
Depth 1" (2.5 cm)
Height 4.4" (11.2 cm)
Model FX45-U1-U3-XC
Maximum Output Kilowatt Rating 10.8/15kW
Voltage 240/208Phase1/3
Temperature Adjustment Range 104-194°F
Pre-Setting Time Adjustment Range 0-12 Hours
Width 3.4" (8.6 cm)
Depth 1" (2.5 cm)
Height 4.4" (11.2 cm)
-
