HUUM UKU Local

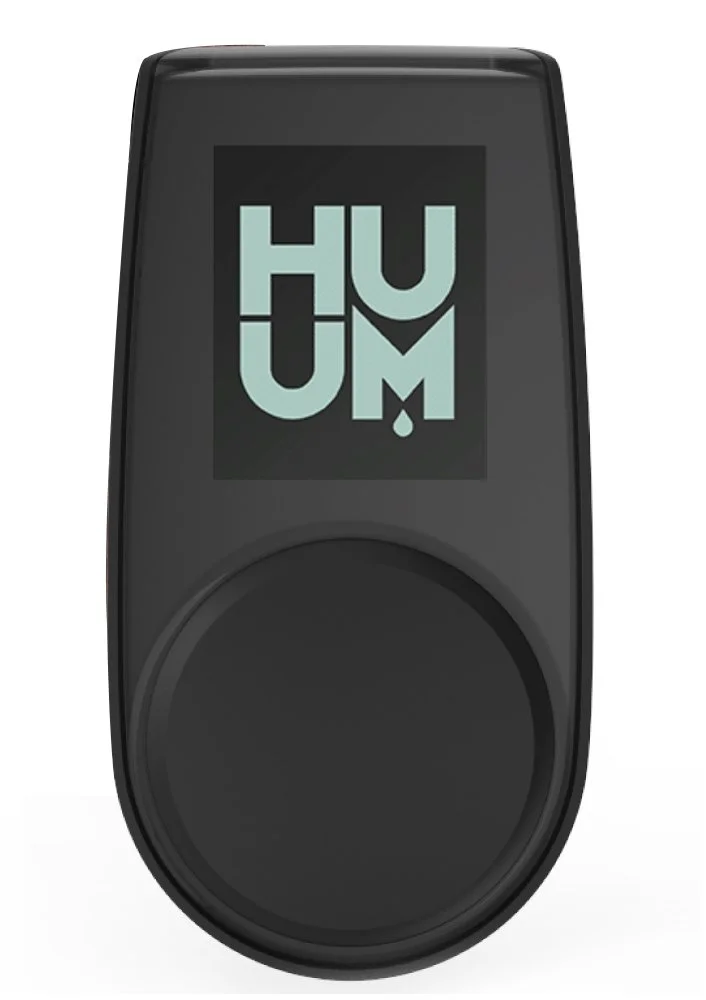

• Sleek black control display panel

• Settable on/off, time, temperature, and delay

• For heaters up to 18kW (over 11kW requires extension box)

• Settable temperature range of 122-230°F

• Delayed start up to 48-hours in advance

• Inside/outside sauna room installation (For outdoor installations, control must be placed in an enclosed weatherproof box)

• Optional smart heating setting

• Available decorative control display panels

• Displays set temperature and room temperature

• Temperature sensor

• Door sensor to keep the heat inside the room

• Remotely located main control module

• Connects to lights and ventilation

• Overheat protection

• Child safety lock

• Limited 3-year residential warranty and limited 1-year commercial warranty

• Black Control Display Panel, 4.13" x 2.17" x 0.87"

• Wood Control Display Panel, 4.25" x 2.25" x 1"

• Main Control Module, 5.59" x 3.54" x 2.28"

• Temperature Sensor

• Door Sensor

• Control Display Panel Cable, 9.84', 22AWG

• Temperature Sensor Cable, 16.4', 24AWG

• Door Sensor Cable, 16.4', 24AWG

• Installation and Operation Manual

• 3-Year Limited Residential Warranty and 1-Year Limited Commercial Warranty

Minimum Temperature 104F

Maximum Temperature 203F

Supply Voltage 40A, 240 V 2~

Heating Period 3hrs, 8hrs, 12hrs

Installation and Operation Manual:

https://huumsauna.com/wp-content/uploads/2023/03/H200402L03_v8_UKU_4_1_User_Manual_US_PRINT.pdf

Warranty:

https://huumsauna.com/warranty/
